MZ-1S Series Quarter turn manual gear actuator

Enquiry

Product Details

It is quarter turn gear actuator, suit to be used on ball valves, butterfly valves, plug valves, Rotary valve etc. The housing made by precise casting, and the gear boxes have fresh pattern and nice appearance. It transmitted by worm gear and worm, and the worm gear with self-locking,also by using tapered roller bearing, the gear box can be operated more flexibly and have higher efficience. Stem nut can be uni-body or separated just according to customers' requirement. The mounting flange adapts to ISO.5211.The Protection grade can be IP65, for some special environment, it also can be IP68.

Model		MY-0-1S	MY-1-1S	MY-2-1S	MY-3-1S	MY-4-1S	MY-4-1SZ	MY-5-1S	MY-5-1SZ	MY-6-1S	MY-6-1SZ	MY-7-1SZ	MY-8-1SZ	MY-9-1SZ	MY-10-1SZ
TECHNICAL-PARAMETERS
Ratio		72:1	85:1	122:1	187:1	190:1	335:1	273:1	625:1	408:1	952:1	1040:1	2940:1	3140:1	3275:1
Max-torque	N·m	1000	1850	3000	4500	6500	8000	10000	15000	15000	18000	40000	53000	130000	170000
Max-torque	kgf·M	102	188	306	408	663	816	1020	1530	1531	1836	2857	5408	8163	8163
Input torque N.m		63	103	122	120	175	120	185	120	185	100	170	220	230	305
Weight Kg		13	16	33	41	60	65	110	135	150	170	213	295	520	650
CONNECTION-SIZE
FLANGE		F12	F14	F16	(F20)	F25	F25	F30	F30	F35	F35	F40	F48	F60	F60
D		150	175	210	250	300	300	350	350	415	415	475	560	686	686
PCD	D0	125	140	165	205	254	254	298	298	356	356	406	483	603	603
PCD	N-H-DP	4-M12-18	4-M16-24	4-M20-30	8-M16-24	8-M16-24	8-M16-24	8-M20-30	8-M20-30	8-M30-45	8-M30-45	8-M36-54	12-M36-54	20-M36-54	20-M36-54
Convex (D1×h)		85×3	100×4	130×5	140×5	200×5	200×5	230×5	230×5	260×5	260×5	300×8	370×8	470×8	470×8
mm (Φd) Max-Stem-Diameter		38 12×8	45 14×9	55 16×10	65 20×12	80 22×14	80 22×14	105 28×16	105 28×16	115 32×18	115 32×18	140 36×20	155 40×22	180 45×25	200 50×28

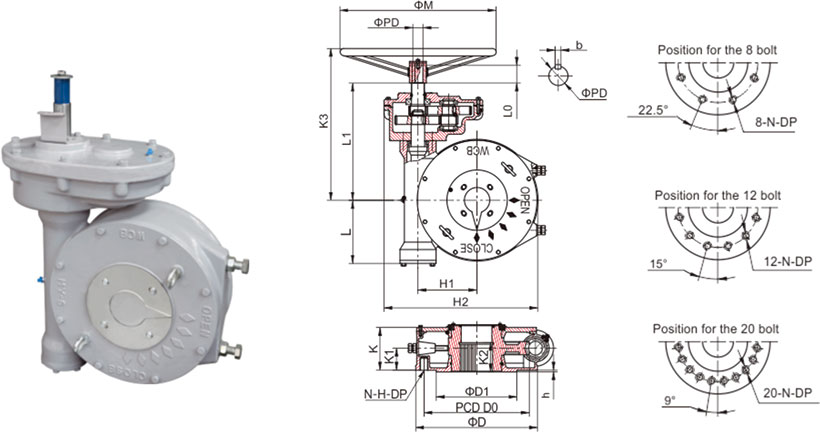

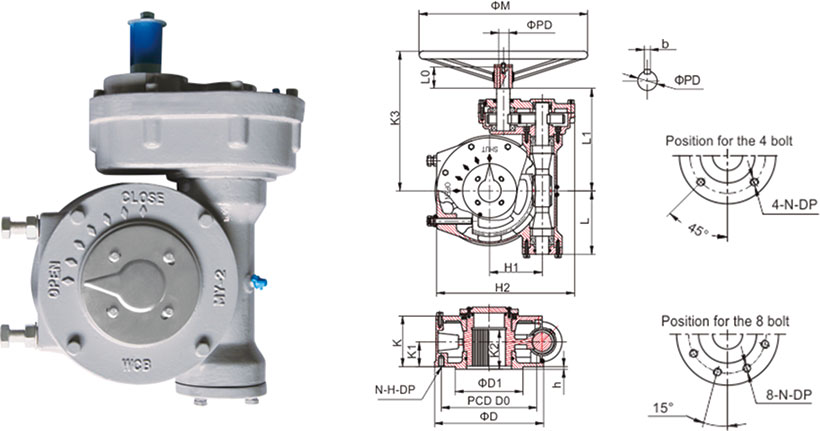

APPEARANCE-SIZE
H1		66	75	92	111	145	145	160	160	200	200	225	270	315	355
H1		196	221	283	322	388	388	404	404	510	510	582	670	740	765
K		89	89	108	110	140	140	140	140	179	179	188	203	230	240
K1		47	45	63	57	80	80	70	70	90	90	100	100	117	125
K2		47	58	62	60	100	100	102	102	112	112	140	155	176	200
K3		230	260	308	360	455	455	515	515	534	534	593	653	720	920
L		83	92	113	125	155	155	197	197	230	230	264	300	368	370
L1		161	170	198	211	260	295	294	325	338	359	413	453	520	655
handwheel	PD	15	21	21	28	28	28	28	28	32	32	38	45	45	45
	(b)key	5	6	6	8	8	8	8	8	10	10	10	12	12	12
	L0	30	35	35	40	40	40	40	40	50	50	50	50	50	50
	M	300	350	400	450	500	500	600	600	650	650	700	750	800	800
