MY-1SD Series Quarter turn electric gear actuator



Enquiry
Download Catalog

Product Details

It is quarter turn gear actuator, suit to be used on ball valves, butterfly valves, plug valves etc. The housing made by precise casting, and the gear boxes have fresh pattern and nice appearance. It transmitted by worm gear and worm, and the worm gear with self-locking,also by using tapered roller bearing, the gear box can be operated more flexibly and have higher efficience. Stem nut can be uni-body or separated just according to customers' requirement. The mounting flange adapts to ISO.5211.The Protection grade can be IP65, for some special environment, it also can be IP68.





ModelMY-0
-1S-D		MY-1
-1S-D		MY-2
-1S-D		MY-3
-1S-D		MY-4
-1S-D		MY-4
-1S-D		MY-5
-1S-D		MY-5
-1S-D		MY-6
-1S-D		MY-6
-1S-D		MY-7
-1S-D		MY-8
-1S-D		MY-9-
1S-D		MY-10
-1S-D
ModelCONNECTION-SIZE
FLANGEF12F14F16(F20)F25F25F30F30F35F35F40F48F60F60
D150175210250300300350350415415475560686686
PCDDO125140165205254254298298356356406483603603
N-H-DP4-M12
-18		4-M16
-24		4-M20
-30		8-M16
-24		8-M16
-24		8-M16
-24		8-M20
-30		8-M20
-30		8-M30
-45		8-M30
-45		8-M36
-54		12-M36
-54		20-M36
-54		20-M36
-54
Convex (D1xh)85x3100x4130x5140x5200x5200x5230x5230x5260x5260x5300x8370x8470x8470x8
mm(Φd)Max-
Stem-Diameter		38
10x8		45
14x9		55
16x10		65
20x12		80
22x14		80
22x14		105
28x16		105
28x16		115
32x18		115
32x18		140
36x20		155
40x22		200
45x25		220
50x28
Input Shaft2020203030303030303040405050
666888888812121414
4040405050505050505060607575

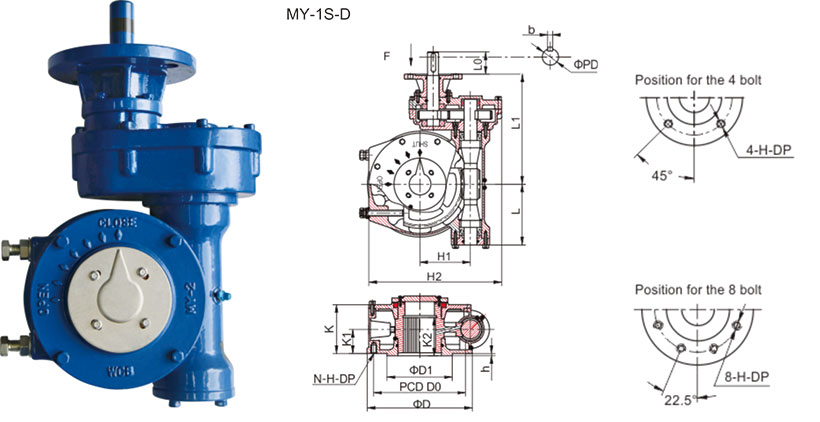

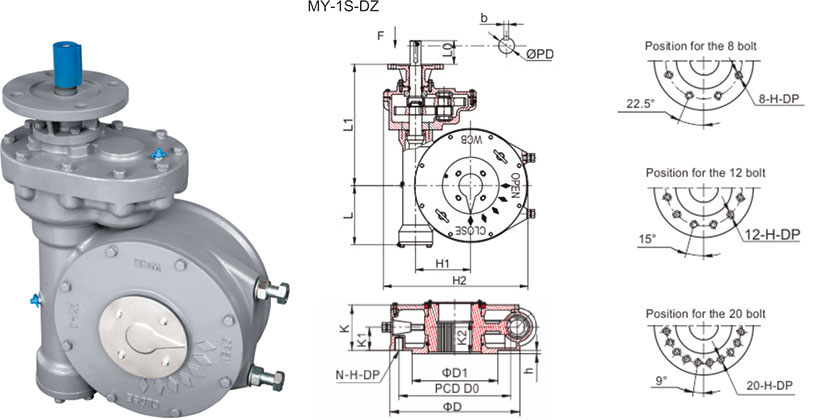

APPEARANCE-SIZE
H1667592111145145160160200200225270315334
H2195214274.5325.5374374417.5417.5542.5542.5617.5705854881
K8989108110140140140140179179188203230240
K147456357808070709090100100120125
K247586260100100102102112112140155176200
L8392113125155155197197230230264300368395
L121122024826131034534537538840946350349570


ModelOptional
   ratio		Output
   torque N.m		Input torque
   N.m		Output FlangeInput Flange
IS05211IS05211IS05210Input shaftGB2920-81
MY-00-1SD60：1300Nm25NmF10F07F10Φ15x5x40Z10
60：1400Nm30NmF10F07F10Φ15x5x40Z10
MY-0-1SD50:1700Nm60NmF12F10F10Φ20x6x40Z10
60:148NmF12F10F10Φ20x6x40Z10
70:141 NmF12F10F10Φ20x6x40Z10
50:11000Nm80NmF12F10F10Φ20x6x40Z10
60:168NmF12F10F10Φ20x6x40Z10
70:160NmF12F10F10Φ20x6x40Z10
MY-1-1SD60:11500Nm108NmF14F12F10Φ20x6x40Z10
70:1100NmF14F12F10Φ20x6x40Z10
82:180NmF14F12F10Φ20x6x40Z10
MY-2-1SD122:12500Nm100NmF16F14F10Φ20x6x40Z20
235:148NmF16F14F10Φ20x6x40Z20
320:141 NmF16F14F10Φ20x6x40Z10
122:13500Nm120NmF16F14F10Φ20x6x40Z15
235:168NmF16F14F10Φ20x6x40Z10
320:160NmF16F14F10Φ20x6x40Z10
440:141 NmF16F14F10Φ20x6x40Z10
MY-3-1SD132:14500Nm142NmF20F16F14Φ30x8x50Z15
170:1120NmF20F16F10Φ20x6x40Z15
256:180NmF20F16F10Φ20x6x40Z20
346:168NmF20F16F10Φ20x6x40Z20
475:148NmF20F16F10Φ20x6x40Z10
MY-4-1SD150:16500Nm203NmF25F16/F20F14Φ30x8x50Z20
198:1142NmF25F16/F20F14Φ30x8x50Z30
230:1120NmF25F16/F20F10Φ20x6x40Z30
265:1108NmF25F16/F20F10Φ20x6x40Z60
150:18500Nm244NmF25F16/F20F14Φ30x8x50Z30
198:1203NmF25F16/F20F14Φ30x8x50Z30
230:1176NmF25F16/F20F14Φ30x8x50Z30
265:1142NmF25F16/F20F14Φ30x8x50Z20
150:110000Nm298NmF25F16/F20F14Φ30x8x50Z30
198:1244NmF25F16/F20F14Φ30x8x50Z30
230:1203NmF25F16/F20F14Φ30x8x50Z20
265:1176NmF25F16/F20F14Φ30x8x50Z20
MY-5-1SD160:113000Nm400NmF30F25F16Φ40x12x60Z60
215:1298NmF30F25F14Φ30x8x50Z60
314:1176NmF30F25F14Φ30x8x50Z45
372:1150NmF30F25F14Φ30x8x50Z30
160:116000Nm450NmF30F25F16Φ40x12x60Z45
215:1366NmF30F25F16Φ40x12x60Z45
314:1244NmF30F25F14Φ30x8x50Z30
372:1203NmF30F25F14Φ30x8x50Z30
MY-6-1SD153:122000Nm600NmF35F25/F30F16Φ40x12x60Z60
215:1450NmF35F25/F30F16Φ40x12x60Z45
392:1244NmF35F25/F30F14Φ30x8x50Z30
490:1203NmF35F25/F30F14Φ30x8x50Z30
568:1176NmF35F25/F30F14Φ30x8x50Z20
705:1142NmF35F25/F30F14Φ30x8x50Z15
952:1120NmF35F25/F30F10Φ20x6x45Z15
153:126000Nm750NmF35F25/F30F16Φ40x12x60Z90
215:1542NmF35F25/F30F16Φ40x12x60Z60
392:1298NmF35F25/F30F14Φ30x8x50Z30
490:1244NmF35F25/F30F14Φ30x8x50Z30
568:1203NmF35F25/F30F14Φ30x8x50Z20
705:1176NmF35F25/F30F14Φ30x8x50Z20
952:1142NmF35F25/F30F14Φ30x8x50Z15


ModelOptional
   ratio		Output
   torque N.m		Input torque
   N.m		Output FlangeInput Flange
ISΦ5211ISΦ5211ISΦ5210Input shaftGB2920-81
MY-7-1SD255:135000Nm600NmF40F30/F35F16Φ40x12x60Z60
340:1450NmF40F30/F35F14Φ30x8x50Z45
395:1400NmF40F30/F35F14Φ30x8x50Z45
560:1298NmF40F30/F35F14Φ30x8x50Z30
700:1250NmF40F30/F35F14Φ30x8x50Z30
860:1203NmF40F30/F35F14Φ30x8x50Z20
1040:1176NmF40F30/F35F14Φ30x8x50Z20
255:140000Nm680NmF40F30/F35F16Φ40x12x60Z60
340:1500NmF40F30/F35F16Φ40x12x60Z60
395:1450NmF40F30/F35F14Φ30x8x50Z45
560:1366NmF40F30/F35F14Φ30x8x50Z45
700:1250NmF40F30/F35F14Φ30x8x50Z30
860:1244NmF40F30/F35F14Φ30x8x50Z30
1040:1203NmF40F30/F35F14Φ30x8x50Z20
MY-8-1SD320:150000Nm680NmF48F35/F40F16Φ40x12x60Z90
360:1600NmF48F35/F40F16Φ40x12x60Z60
435:1500NmF48F35/F40F14Φ30x8x50Z60
505:1450NmF48F35/F40F14Φ30x8x50Z45
620:1366NmF48F35/F40F14Φ30x8x50Z45
760:1300NmF48F35/F40F14Φ30x8x50Z30
910:1250NmF48F35/F40F14Φ30x8x50Z30
1248:1203NmF48F35/F40F14Φ30x8x50Z20
320:160000Nm800NmF48F35/F40F16Φ40x12x60Z90
360:1750NmF48F35/F40F16Φ40x12x60Z90
435:1600NmF48F35/F40F16Φ40x12x60Z60
505:1500NmF48F35/F40F14Φ30x8x50Z60
620:1450NmF48F35/F40F14Φ30x8x50Z45
760:1366NmF48F35/F40F14Φ30x8x50Z45
910:1300NmF48F35/F40F14Φ30x8x50Z30
1248:1244NmF48F35/F40F14Φ30x8x50Z30
MY-9-1SD385:180000Nm900NmF60F48F16Φ40x12x60Z90
435:1800NmF60F48F16Φ40x12x60Z90
485:1750NmF60F48F16Φ40x12x60Z60
580:1600NmF60F48F16Φ40x12x60Z60
730:1500NmF60F48F14Φ30x8x50Z60
846:1450NmF60F48F14Φ30x8x50Z45
950:1400NmF60F48F14Φ30x8x50Z45
1120:1366NmF60F48F14Φ30x8x50Z45
385:1100000Nm1200NmF60F48F25Φ50x14x80Z120
435:11020NmF60F48F25Φ50x14x80Z120
485:1900NmF60F48F16Φ40x12x60Z90
580:1750NmF60F48F16Φ40x12x60Z90
730:1625NmF60F48F16Φ40x12x60Z60
846:1600NmF60F48F16Φ40x12x60Z60
950:1542NmF60F48F16Φ40x12x60Z60
1120:1450NmF60F48F14Φ30x8x50Z45
MY-10-1 SD435:1120000Nm1200NmF60F48F25Φ50x14x80Z120
535:11020NmF60F48F25Φ50x14x80Z120
610:1900NmF60F48F16Φ40x12x60Z60
645:1845NmF60F48F16Φ40x12x60Z60
715:1800NmF60F48F16Φ40x12x60Z60
760:1750NmF60F48F16Φ40x12x60Z60
1000:1600NmF60F48F16Φ40x12x60Z60
1100:1542NmF60F48F16Φ40x12x60Z60
1248:1500NmF60F48F14Φ30x8x50Z45
435:1150000Nm1490NmF60F48F25Φ50x14x80Z120
535:11290NmF60F48F25Φ50x14x80Z120
610:11200NmF60F48F25Φ50x14x80Z120
645:11100NmF60F48F25Φ50x14x80Z120
715:11020NmF60F48F25Φ50x14x80Z120
