MY-V Series Multi-turn manual gear actuator

Enquiry

Product Details

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. It can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor flange, double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

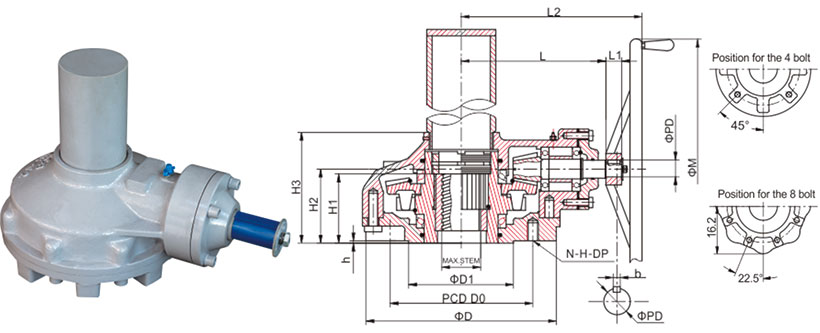

Model		MY-VS10	MY-VS20	MY-V0	MY-V1	MY-V2	MY-V3	MY-V35	MY-V4	MY-V5	MY-V6
TECHNICAL-PARAMETERS
Ratio		2.3:1	2.35:1	3.1:1	3.6:1	4:1	4.1:1	5:1	6:1	6.3:1	7.1:1
Max-torque	N-m	216	363	589	932	1491	2296	3404	4000	4500	7250
Max-torque	kgf.M	22	37	60	95	152	234	347	408	459	740
Max-stem dia. mm		20	25	35	40	52	60	70	90	100	120
Weight Kg		10	12	21.5	28	35	50	95.5	160	190	288
CONNECTION-SIZE
FLANGE		F10	F12	F14	F16	(F20)	F25	F30	F35	F35	F40
D		125	150	175	210	250	300	350	415	415	475
PCD	DO	102	125	140	165	205	254	298	356	356	406
PCD	N-H-DP	4-M10-15	4-M12-18	4-M16-24	4-M20-30	8-M16-24	8-M16-24	8-M20-30	8-M30-45	8-M30-45	8-M36-54
Convex (D1xh)		70x3	85x3	100x4	130x4	140x5	200x5	230x5	260x5	260x5	300x8
APPEARANCE-SIZE
H1		38	46	55	62	75	85	105	145	145	165
H2		65	70	70	75	90	100	140	160	155	210
H3		110	125	128	145	160	170	225	280	280	335
L		120	135	160	180	200	225	280	353	355	365
L2		215	230	260	320	340	365	420	445	515	565
handwheel	PD	28	28	28	28	32	32	32	38	38	50
	(b)key	8x7	8x7	8x7	8x7	10x8	10x8	10x8	10x8	10x8	2-16x10
	L1	40	40	40	40	50	50	50	50	50	55
	M	250	250	400	450	500	600	650	700	700	800
