MY-V-1S Series Multi-turn manual gear actuator,Manual Multi-turn Gearbox-Wenzhou Yuezhong Mechanical Tech. Co.,Ltd

Home > Products >Manual Multi-turn Gearbox

MY-V-1S Series Multi-turn manual gear actuator

Enquiry

Product Details

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. It can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor flange, double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.

Model		MY-V2 -1S	MY-V3 -1S	MY-V35 -1S	MY-V4 -1S	MY-V5 -1S	MY-V6 -1S	MY-V7 -1S	MY-V8 -1S	MY-V9 -1S	MY-V10 -1S

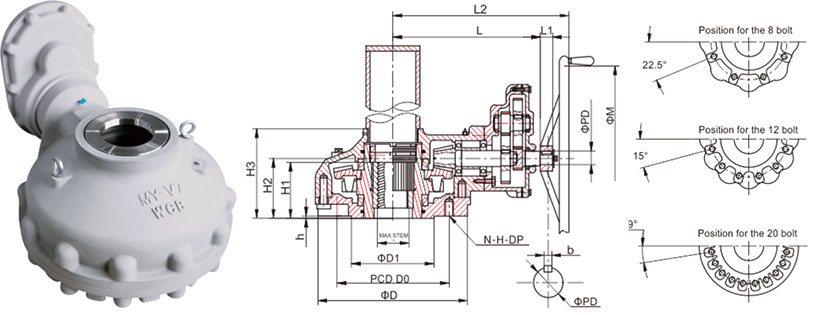

TECHNICAL-PARAMETERS
Ratio		12.2:1	18.1:1	23:1	42:1	42:1	46:1	94.4:1	115.5:1	126:1	200:1
Max-torque	N-m	2500	3500	4000	6800	8200	14500	18600	26100	65000	100000
Max-torque	kgf.M	255	357	510	693	836	1479	1897	2662	6632	10204
Max-stem dia. mm		52	60	70	90	100	120	130	150	180	200
Weight Kg		52	70	119	180	265	328	470	645	1300	1700
CONNECTION-SIZE
FLANGE		(F20)	F25	F30	F35	F35	F40	F48	F60	F60	F80
D		250	300	350	415	415	475	560	686	686	900
PCD	DO	205	254	298	356	356	406	483	603	603	800
PCD	N-H-DP	8- M16-24	8- M16-24	8- M20-35	8- M30-45	8- M30-45	8- M36-54	12- M36-54	20- M36-54	20- M36-54	20- M42-65
Convex (D1xh)		140x5	200x5	230x5	260x5	260x5	300x8	370x8	470x8	470x8	650x8
APPEARANCE-SIZE
H1		75	85	105	120	145	165	195	200	200	200
H2		90	100	140	160	155	210	220	250	330	330
H3		160	170	225	280	280	335	331	346	409	540.5
L		305	330	390	480	480	500	550	610	817	964
L2		445	470	550	595	655	675	750	810	1020	1190
handwheel	PD	28	28	28	38	38	38	45	45	50	50
	(b)key	8x7	8x7	8x7	10x8	10x8	10x8	12x8	12x8	14x9	14x9
	L1	40	40	40	50	50	50	50	50	50	60
	M	400	500	600	650	650	700	800	900	1000	1000
