CK Series Multi-turn manual gear actuator



Enquiry
Download Catalog

Product Details

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. It can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor flange, double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.



ModelRK03RK05RK12CK22CK32CK52CK82CK10
TECHNICAL-PARAMETERS
Ratio2.6:13:13.6:14.2:14.2:15:16.3:17.1:1
Max-thrustN-m90000135000180000250000280000370000650000880000
kgf.M918413776183672551028571377556632789796
Max-torqueN-m35055090015002000280045006800
kgf.M365692153204286459694
Max-stem dia.mm425260708095110130
Weight Kg182528334892.5190280
CONNECTION-SIZE
FLANGEF12F14F16(F20)F25F30F35F40
D150175210250300350415475
PCDDO125140165205254298356406
N-H-DP4-M12-184-M16-244-M20-308-M16-248-M16-248-M20-308-M30-458-M36-54
Convex (D xh)85x3100x4130x4140x5200x5230x5260x5300x8

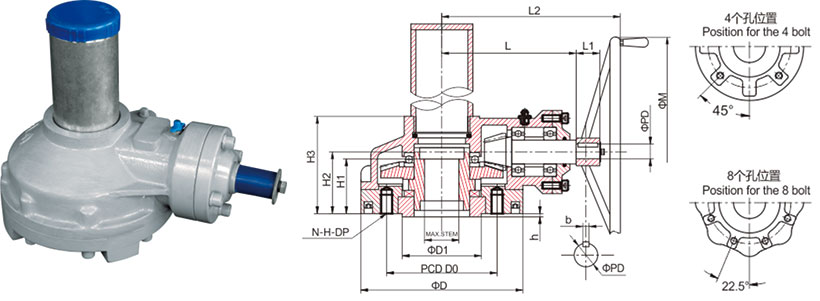

APPEARANCE-SIZE
H14569768997120150176
H26569789194.5112140214
H3101114125144158188235338.5
L152170180202226280355365
L2275350370342366440515675
handwheelPD2828283232323850
(b)key8x78x78x710x810x810x810x82-16x10
L14040405050385050
M300400500550600700800800
