CK-1S Series Multi-turn manual gear actuator

Home > Products >Manual Multi-turn Gearbox

CK-1S Series Multi-turn manual gear actuator



Enquiry
Download Catalog

Product Details

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. It can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor flange, double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.




Model2CK2-1S2CK3-1S2CK5-1S2CK8-1S2CK10-1S2CK15-1S2CK18-1S
TECHNICAL-PARAMETERS
Ratio13.6:117.6:122:142.5:148:194.4:1115.5:1
Max-thrustN-m290000400000500000800000110000012500001500000
kgf.M2959240816351020481633112244127551153061
Max-torqueN-m2350320056008500135001850026000
kgf.M240327398714102015822245
Max-stem dia. mm708095110130150160
Weight Kg5270115256316470645
CONNECTION-SIZE
FLANGE(F20)F25F30F35F40F48F60
D250300350415475560686
PCDDO205254298356406483603
N-H-DP8-M16-248-M16-248-M20-358-M30-458-M36-5412-M36-5420-M36-54
Convex (D1xh)140x5200x52300x5260x5300x8370x8470x8

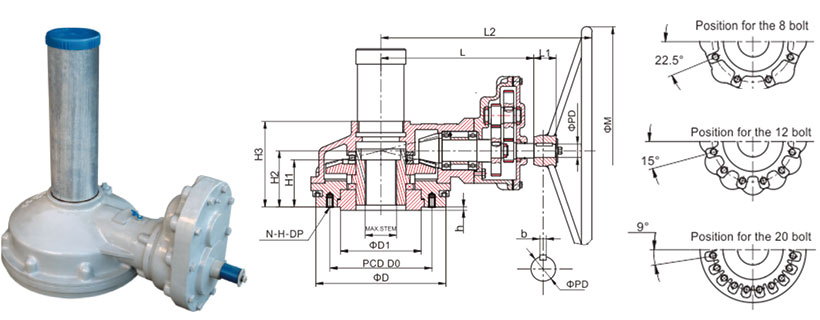

APPEARANCE-SIZE
H18997120152176188230
H29194.5112140214227231
H3144158188235338.5331346
L305330390480500550610
L2400470530640660750810
handwheelPD28283238384545
(b)key8x78x78x710x810x812x812x8
L140405050505050
M500550600700750800850
