BA-L Series Multi-turn manual gear actuator



Enquiry
Download Catalog

Product Details

The gear actuator can be installed directly on the gate valve, globe valve and so on. By using Spiral bevel gears and thrust ball bearing, the gear actuator can run smoothly, and have high output torque, low noise and high efficience. It can avoid from waterproof & oil leakage as sealing glands are used at all the through part. And the Protection grade can be IP65.The handwheel and the stem covers can be customized. For different valves and requirement. there are single stair gear actuator with motor flange, double stair gear actuator with motor flange and double stair gear actuator with handwheel etc.



ModelBA-000BA-00BA-0BA-1BA-2BA-3BAA-3
TECHNICAL-PARAMETERS
Ratio2.35:13:13.6:14.5:15.2:16.3:123:1
Max-torque Nm3604807351470294040006000
Max-thrust N430006400098000196000340000490000630000
Max-stem dia.mm
   Copper-nut
253040527090110
Gate-valve DN5080-100150-200250-400450-700800-10001200
Globe-valve DN5080100-150200-250300-350400-500550-650
Weight Kg15222854110198320
CONNECTION-SIZE
FlangeF12F14F16F25F30F35F35
D150175210300350415415
PCDDO125140165254298356356
N-H-DP4-M12-184-M16-244-M20-308-M16-248-M20-308-M30-458-M30-45
Convex    (D1xh )85x3100x4130x5200x5230x5260x5260x5

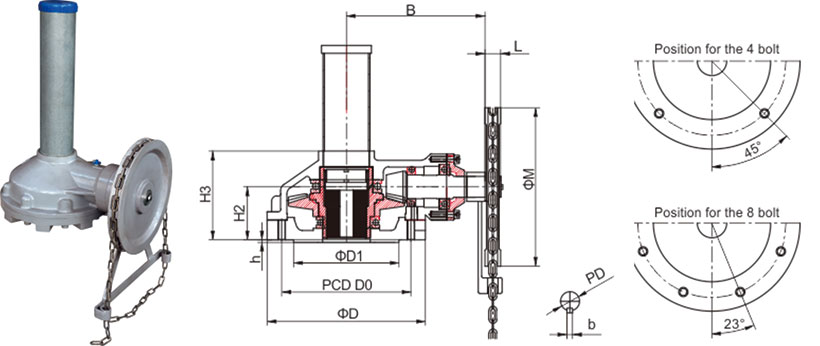

APPEARANCE-SIZE
B150150170233306370395
H280808597142160178
H3125125155175210280290
sprochetPD26282832323838
(b)key8x78x78x710x810x810x810x8
L130303030303040
M200200200300400400600
